Helios – the multi-purpose IoT unit for industrial sensors
Helios connects pressure, temperature, pulse counters, and any industrial sensors to the wireless network – via LoRaWAN®, mioty®, NB-IoT, or LTE-CAT-M1. Pre-assembled or as a generic version for self-assembly.
Helios in practice
Four typical application scenarios in which Helios transmits industrial sensor data wirelessly.
Industrial measurement technology
Monitoring of pressure, temperature, and levels in production facilities, cooling, and hydraulic systems.
Building & HVAC
Wirelessly monitor HVAC systems, ventilation, heat exchangers, and energy centers—indoors and outdoors
Energy & Utility Networks
Pressure drops, leak detection, and condition monitoring in gas, electricity, and water networks.
Smart City & Water
Monitor well levels, groundwater, pumps, and urban infrastructure with hydrostatic probes.
One platform for many sensors
Helios combines industrial sensor technology with modern LPWAN wireless networks—flexible, robust, and energy-efficient.
Multi-Connectivity
LoRaWAN®, mioty®, NB-IoT, and LTE-CAT-M1 – choose the wireless standard that fits your infrastructure.
Universal interfaces
RS485, I²C, SPI, UART, 4–20 mA, Analog 0–10 V, Pulse counter, PT1000 – one device for many sensors.
NFC configuration
Conveniently set measurement and transmission frequencies, thresholds, and network parameters via NFC.
Battery operation
Low-maintenance power supply via 4× AA batteries – ideal for rollouts without cabling.
Power Management
Up to 12 V voltage in battery mode, up to 60 mA for external sensors – reliably powered.
IP67 & UV-resistant
Rugged ABS/PC housing for indoor and outdoor use – even under harsh conditions.
Preconfigured versions
Pressure, temperature (1–4 probes), pulse counter, PT-100/1000 – ready for immediate use right out of the box.

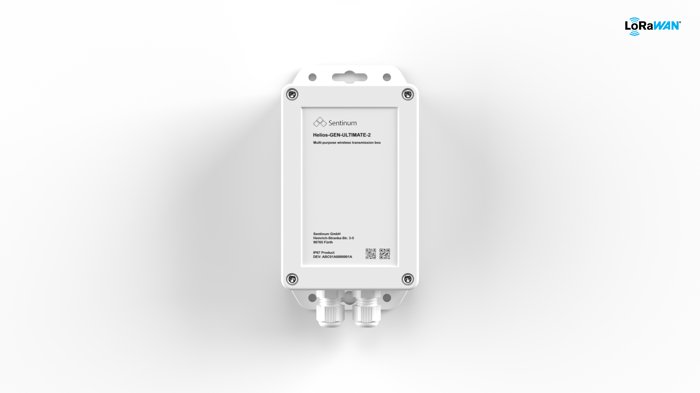

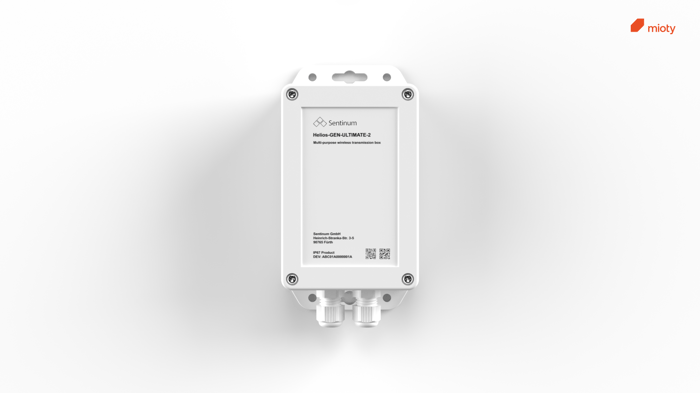

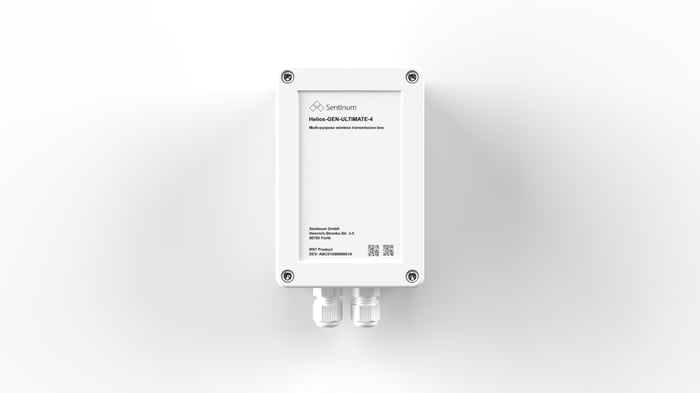

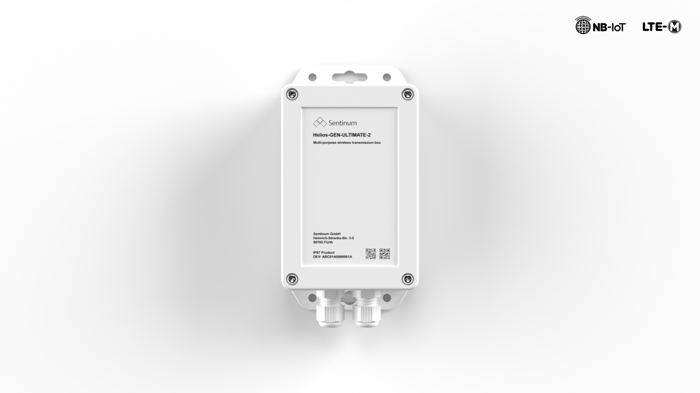

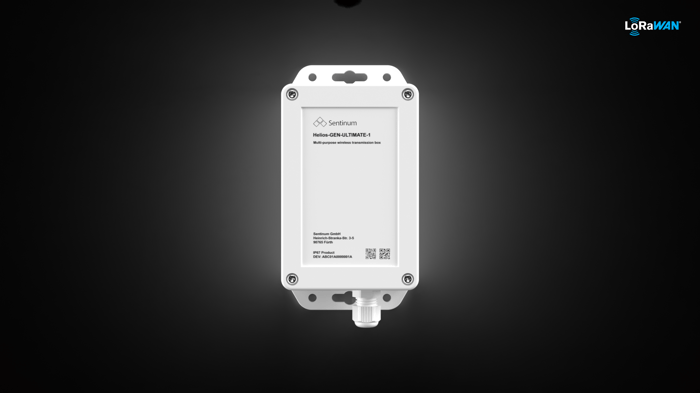

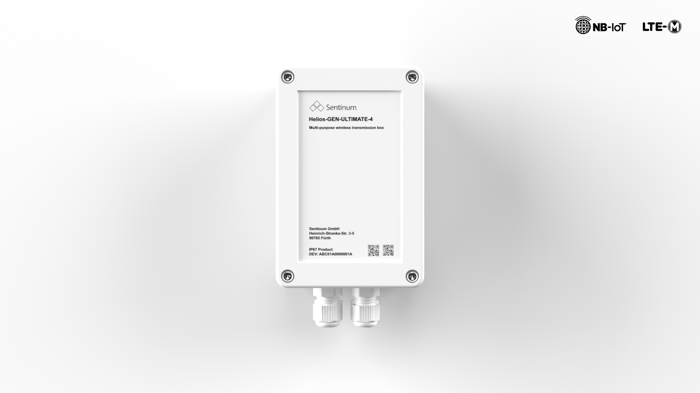

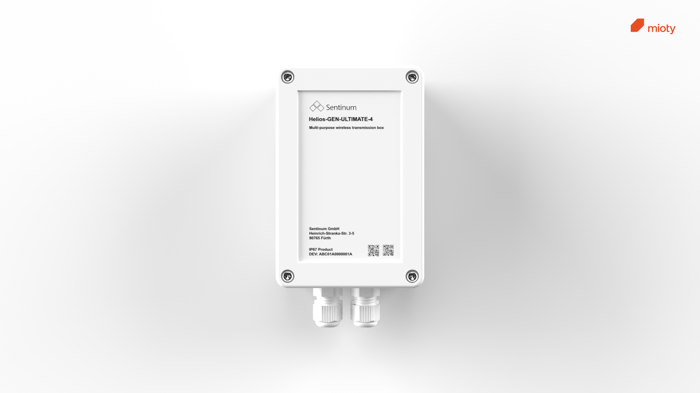

Generic versions
Can be customized with various interfaces for specific sensor applications.
Helios for your industrial sensor systems
Do you have an industrial sensor with RS485, 4–20 mA, 0–10 V, PT1000, or pulse counter output? We adapt Helios to your application—including custom firmware, payload, and interfaces.
- OEM and custom variants for your sensor hardware – available in your own housing color and labeling upon request.
- Firmware adaptations for special measurement cycles, threshold values, or customer-specific payload formats.
- Consulting & Rollout – from feasibility studies to series integration into your infrastructure.
Directly connect to industrial bus systems.
Process classic industrial signals.
Precise temperature measurement.
Counter pulses and digital sensors.
Industries and Applications
Helios is at home in many industries—from production monitoring to municipal water management.
Industry
Wirelessly monitor production halls, logistics, warehouses, cooling, and hydraulic systems.
HVAC and Building Services
Heating, ventilation, and air conditioning systems, as well as outdoor area monitoring.
Energy providers
Gas pipelines and supply networks – detect pressure drops early.
Utilities
Water lines, pump systems, and critical infrastructure.
Smart City
Fountains, groundwater levels, and urban sensor technology with hydrostatic probes.
Custom Applications
Build your own Helios with custom software and interfaces.
Specifications at a glance
The Helios Series at a Glance
Pre-assembled sensor variants – available in LoRaWAN®, mioty®, and NB-IoT/LTE-CAT-M1. Many other variants available upon request.

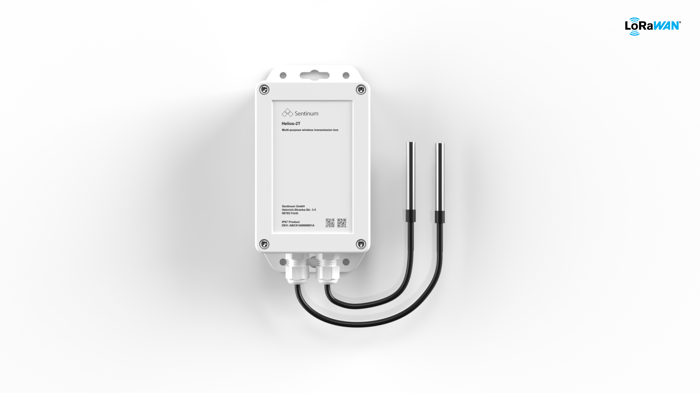

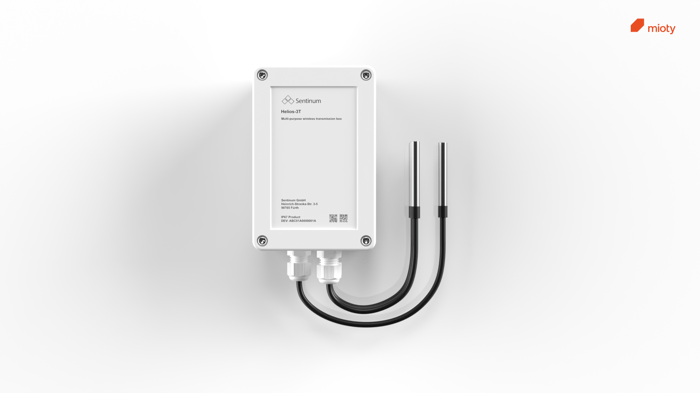

Helios with a temperature sensor
Wireless connection box with a 1-wire DS18B20 temperature sensor – ideal for spot temperature measurements.

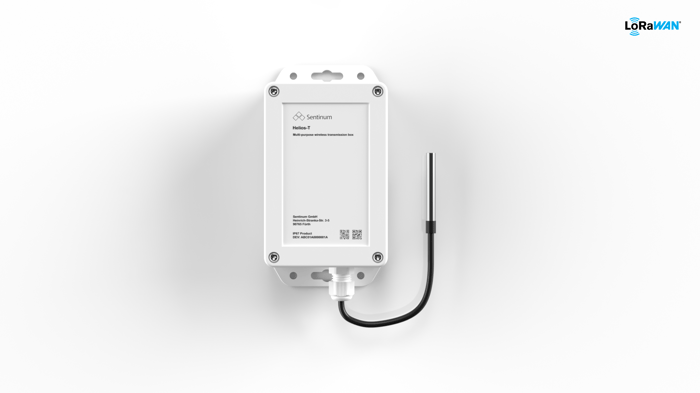

LoRaWAN® Helios Cable Probe Temperature Sensor x 1
With a 1-wire DS18B20 temperature sensor, stainless steel sleeve, approx. 1 m cable. Measurement range -55 °C to +125 °C, IP67, NFC, 4 AA batteries.

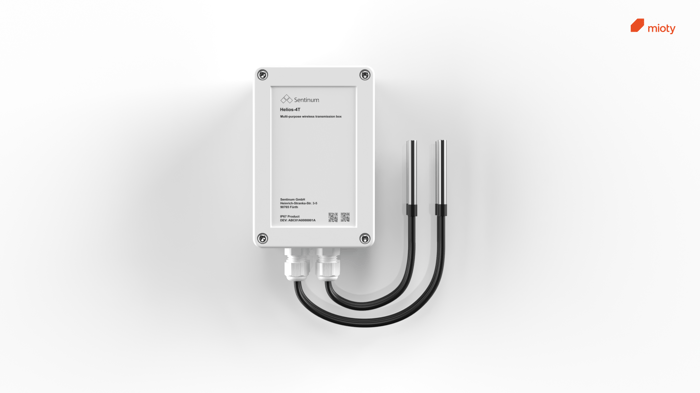

mioty® Helios Cable Probe Temperature Sensor x 1
mioty® version with a 1-wire DS18B20 temperature sensor, stainless steel sleeve, approx. 1 m cable, IP67, NFC configuration.

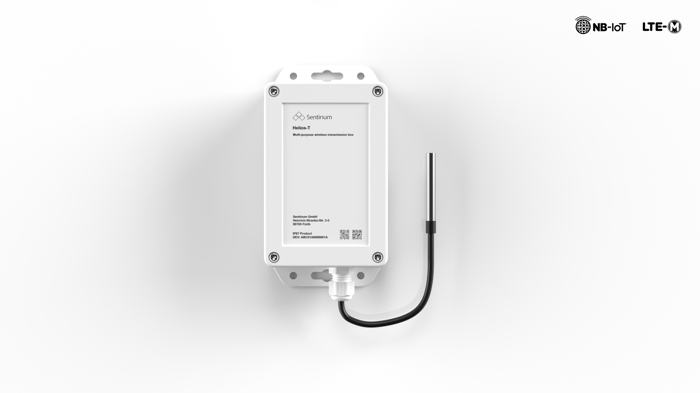

NB-IoT, LTE-CAT-M1 Helios Cable Probe Temperature Sensor x 1
NB-IoT/LTE-CAT-M1 with GNSS, one temperature sensor, IP67. Includes 4 AA batteries, without SIM card and platform.

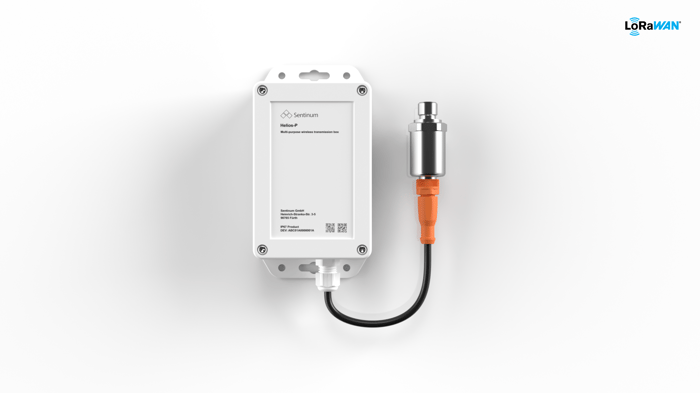

Helios Pressure Sensors
Wireless pressure monitoring in standard version 0–10 bar – for liquid and gaseous media.
LoRaWAN® Helios Pressure Sensor
With a 1/4″ AG pressure sensor, 0–10 bar standard, up to 135 °C media temperature, IP67, NFC.

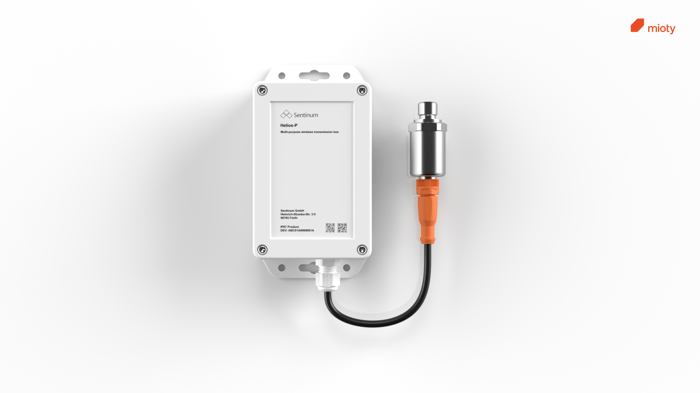

mioty® Helios Pressure Sensor
mioty® variant with a pressure sensor – robust and highly scalable.

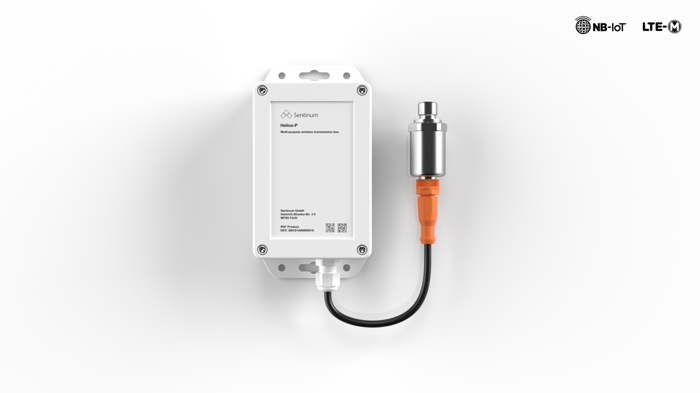

NB-IoT, LTE-CAT-M1 Helios Pressure Sensor
NB-IoT/LTE-CAT-M1 with GNSS and a pressure sensor – without a SIM card or platform.

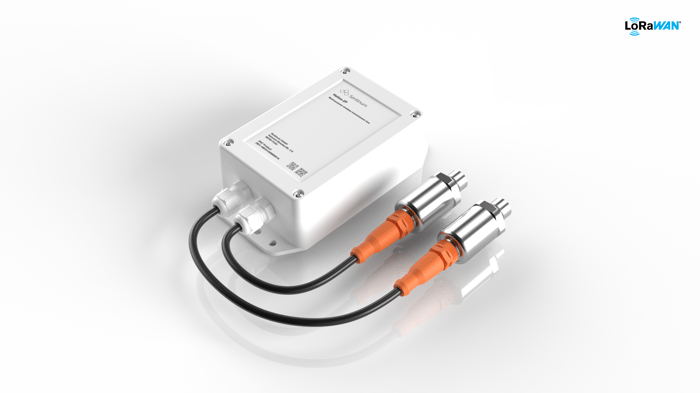

Helios with 2 pressure sensors LoRaWAN®
Two pressure sensors for differential pressure measurement, 0–10 bar standard.

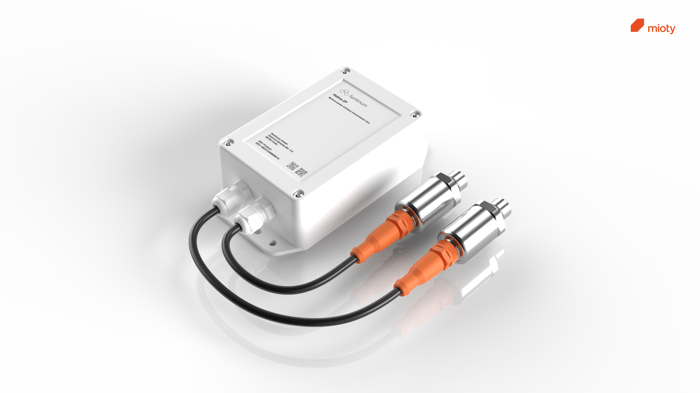

Helios with 2 pressure sensors mioty®
mioty® version for differential pressure measurement with two pressure sensors.
Helios with 2 pressure sensors NB-IoT, CAT-M1, GNSS
NB-IoT/CAT-M1 with GNSS and two pressure sensors for differential pressure.
Pulse counter with magnet and Hall switch
Wireless pulse counter with reed sensor and magnet – ideal for water and gas meters or speed measurement.
LoRaWAN® Helios pulse counter with reed sensor and magnet
Magnetic pulse counter with PIC MS-332-3 reed sensor and magnet. Includes 4 AA batteries, IP67, NFC.
mioty® Helios pulse counter with reed sensor and magnet
mioty® version with PIC MS-332-3 reed sensor and magnet included.
NB-IoT, LTE-CAT-M1 Helios pulse counter with reed sensor and magnet
NB-IoT/LTE-CAT-M1 with GNSS, magnetic pulse counter with reed sensor and magnet.
FAQ
Frequently Asked Questions
Downloads
Documents & Data Sheets
All important documents for the Helios series.
Technical specifications of the Helios series at a glance.
Functions, applications, and use cases summarized.
Step-by-step installation, configuration, and operation.
Complete online documentation, Payload, and Decoder.
Ready for wireless industrial sensors?
Order Helios directly from the Sentinum Shop or talk to our team about custom sensor configurations, OEM versions, and rollouts.
