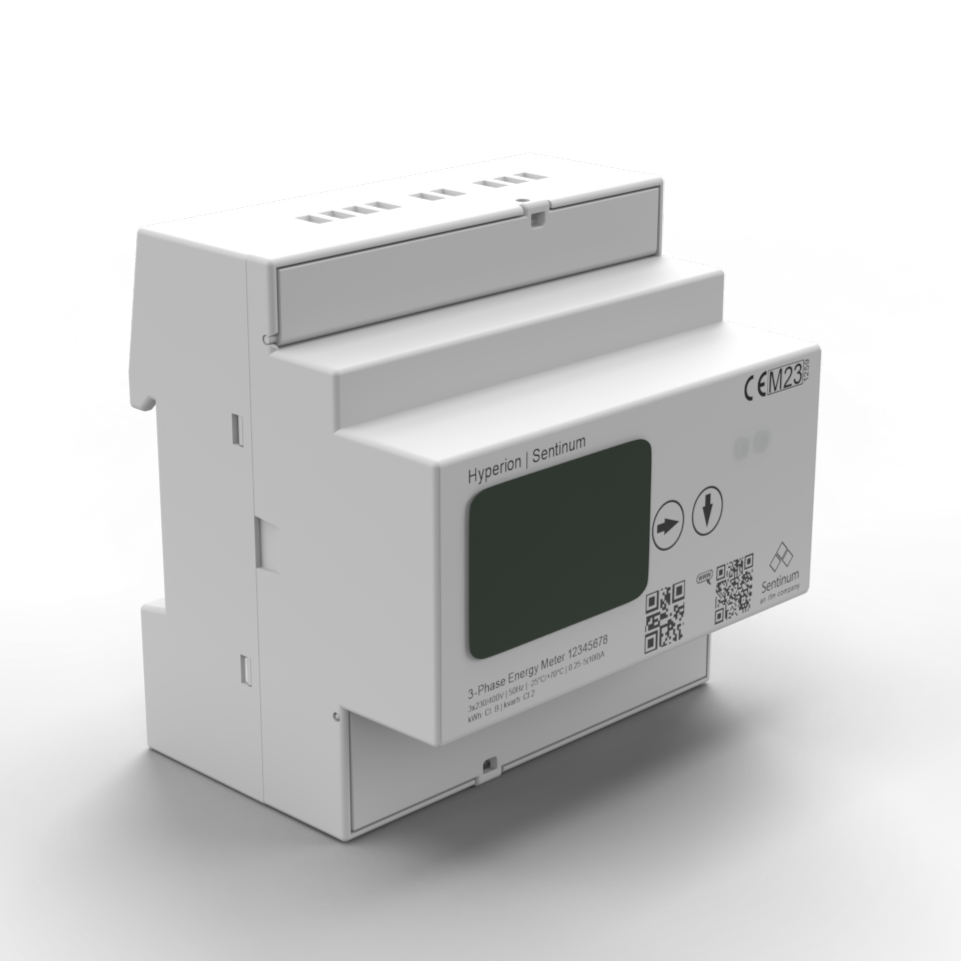

Hyperion – the IoT energy meter for transparent consumption data
Up to three phases, bidirectional measurement, MID B+D certified—and connected wirelessly via LoRaWAN or mioty. Hyperion provides the data foundation for efficiency, billing, and ESG reporting.
Everything a modern IoT energy meter needs to do
Hyperion combines precise measurement, metrology-compliant certification, and wireless connectivity in a compact DIN-rail housing.
Up to 3 phases
Precise consumption measurement across up to three phases – active and reactive energy.
Bidirectional
Separate measurement of consumption and feed-in – ideal for PV and storage systems.
Direct up to 100 A
Direct connection without external transformers – transformer version available up to 1,600 A.
MID B+D approved
Compliant with metrology regulations – suitable for billing and submetering purposes.
Backlit LCD display
Meter readings, power, and status can be read directly on the device – operated via buttons.
5-unit DIN rail mounting
Compact for distribution cabinets and sub-distribution panels – quick to install.
Load profile memory
15-minute load profile according to PTB-A 50.7 with over 3 years of storage depth.
LoRaWAN & mioty
Wireless transmission over long ranges – even in dense building networks.
MID B+D · Billing-capable
Hyperion is certified according to MID Module B+D (Measuring Instruments Directive 2014/32/EU) and PTB-A 50.7. This makes it suitable for billing purposes and sub-metering—including metrology-compliant load profile storage.
6 reasons why energy transparency matters
If you don’t measure your consumption, you can’t control it. Hyperion provides the data foundation for targeted efficiency, fair billing, and ESG reporting.
Increase energy efficiency
Real-time data shows load peaks and consumers – the basis for targeted savings.
Transparent billing
MID-compliant metering enables sub-metering and fair cost allocation.
Integrate renewables
Accurately balance PV generation and self-consumption thanks to bidirectional metering.
Ensuring grid stability
Demand response and load management based on reliable consumption data.
ESG & Reporting
Allocate energy flows per facility—the basis for ISO 50001 and ESG reports.
Detect outages early
Immediately identify anomalies and unusual load profiles and respond.
Another plus: ISO 50001 & ISO 14001
The energy and load data collected with Hyperion can be used directly for energy and environmental management audits.
ISO 50001
Assign energy consumption per system – the basis for load analyses and efficiency verification.
ISO 14001
Calculate CO₂ emissions per consumer and resource usage per property.
Versatile
Hyperion is suitable for any application where electricity is consumed, generated, or billed.
Energy Producers
Reliably account for solar, wind, and biogas plants as well as power plants.
Smart Buildings
Residential buildings, office complexes, and substations—consumption per tenant or trade.
Industry
Make machine and line consumption transparent – achieve ESG and efficiency goals.
PV & Storage
Measure generation, self-consumption, and feed-in bidirectionally and in compliance with MID.
Specifications at a glance
Choose your wireless standard
Hyperion is available in LoRaWAN® and mioty® variants—each with an internal or external antenna. Direct or converter versions available upon request.

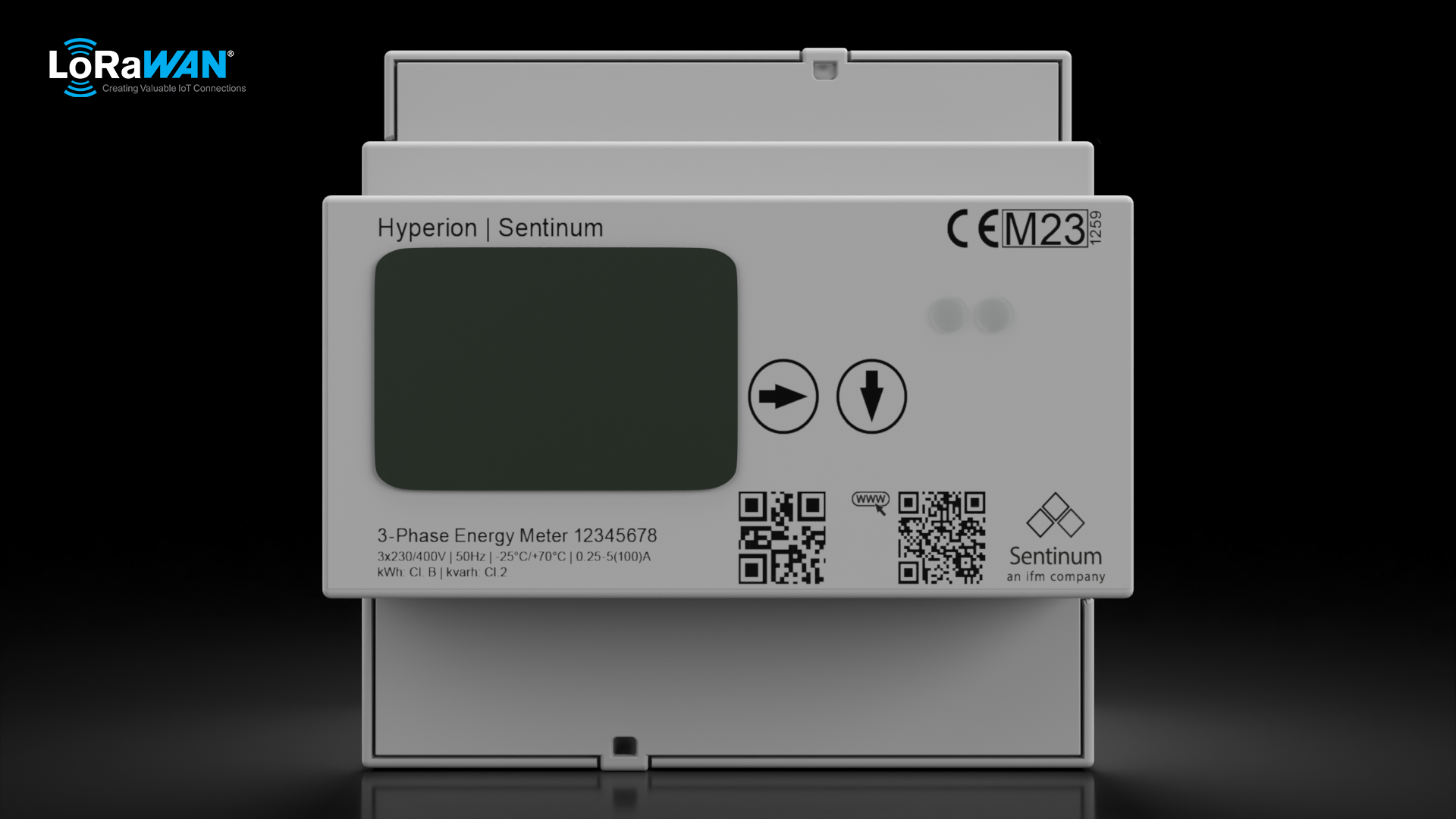

Hyperion LoRaWAN®
Wireless real-time transmission via LoRaWAN. Direct measurement up to 100 A, MID B+D, 5-unit DIN rail.
View in the shop →.png)

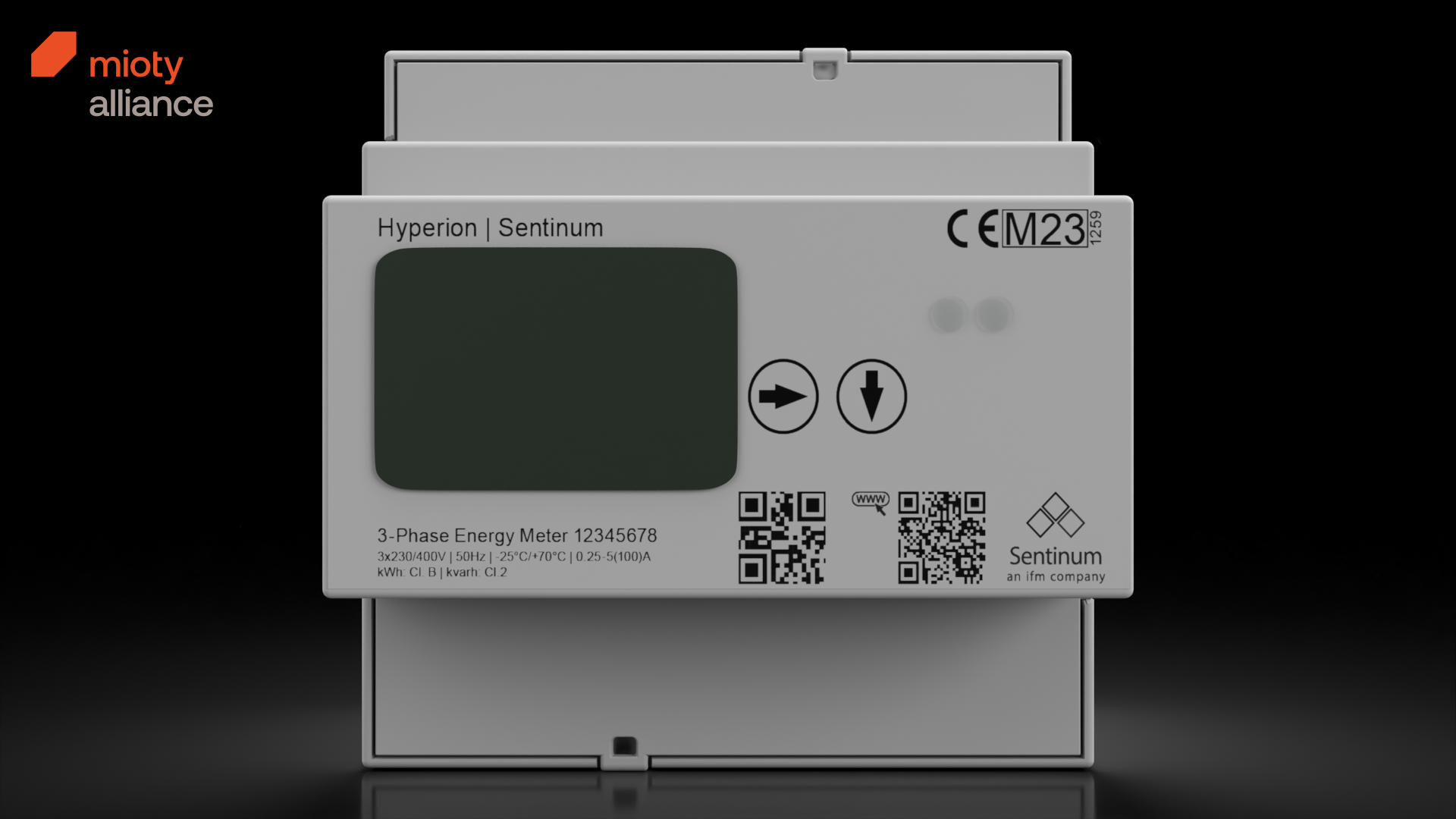

Hyperion mioty®
Massive IoT with maximum scalability. Ideal for dense radio environments and large properties.
View in the shop →FAQ
Frequently Asked Questions
Downloads
Documents & Datasheets
All important documents for the Hyperion available for download as PDFs.
Ready for transparent energy data?
Order Hyperion directly from the Sentinum Shop or talk to our team about transducer measurement, OEM versions, and integrations.
